- Usage: Commercial Manufacture
- No-Load Speed: 1200rpm
- Feed Type: Gravity
- Nozzle Diameter: 1.3mm
- Power Type: Pneumatic
- is_customized: Yes
- Cup Volume: 400cc
- Type: HVLP
- Model Number: w101
- Application: Paint Spray Gun
- Brand Name: WENXING
- Origin: Mainland China
- Certification: NONE
Product Description:

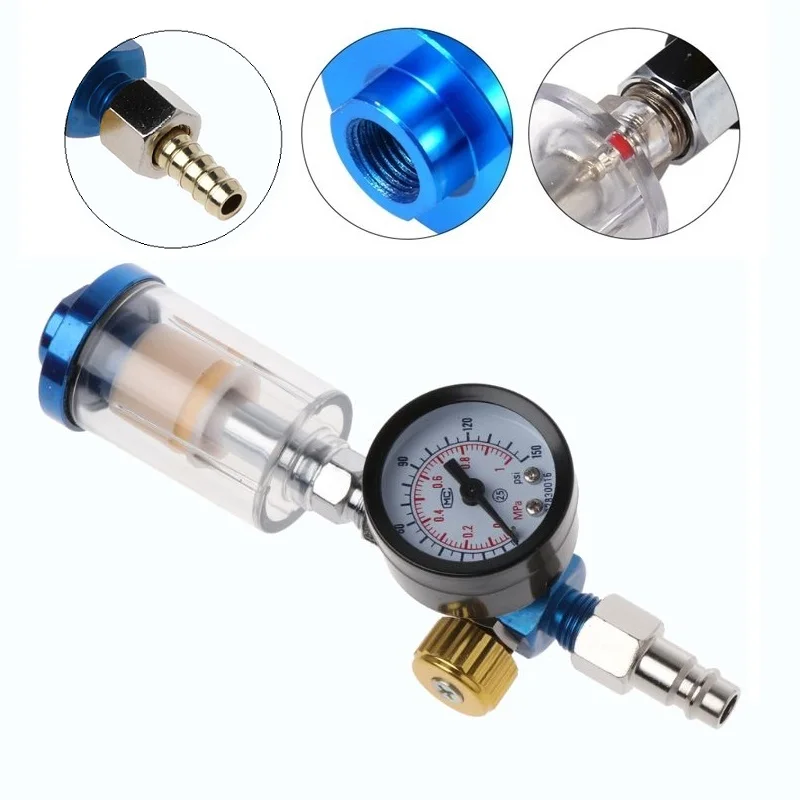

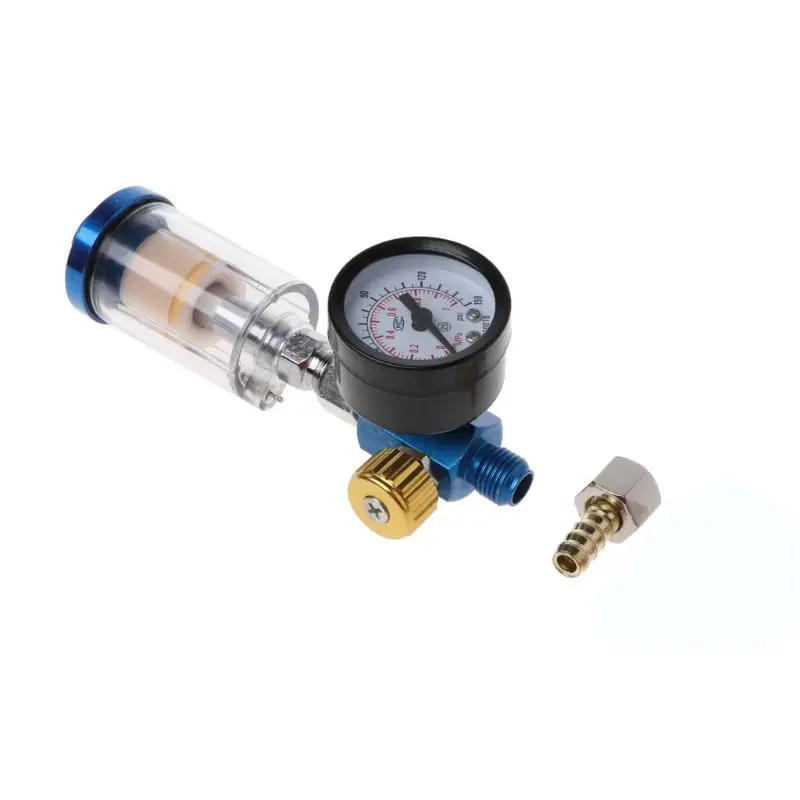

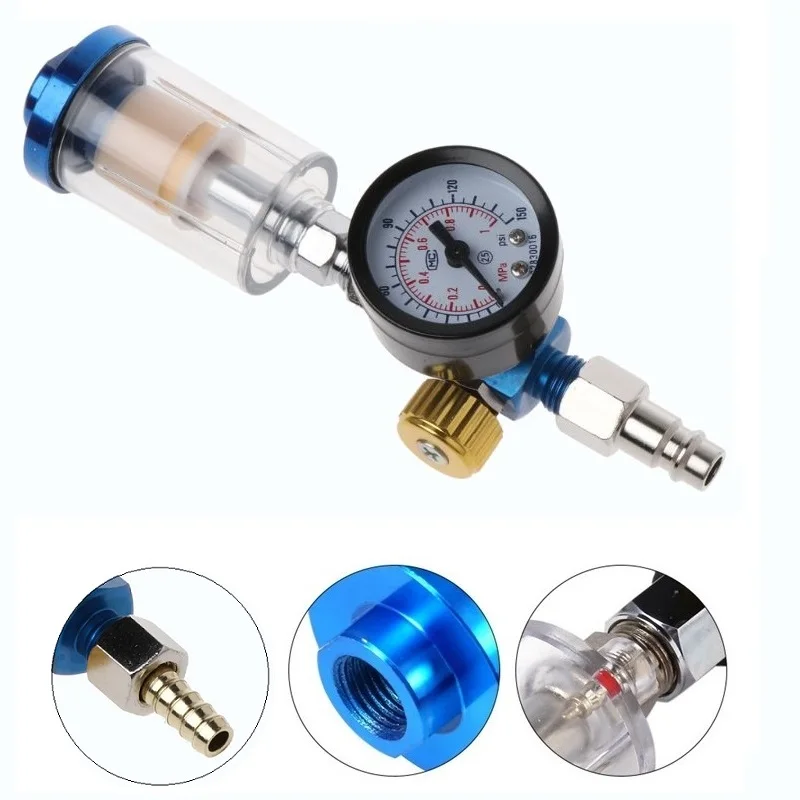

British standard pneumatic gun regulator + mini air filter (oil-water separator)
Oil-water separator
Directly for small pneumatic tools air intake filtration moisture in the air.
Pressure range: pressure 1-9kg / cm2. The maximum pressure less than 9.9kg / cm2
Thread Size: male side connection British units 1/4 "
The female side can be directly connected to the gun
screw-type inlet connector British units 1/4 "Are threaded connections.
Performance: In the case of spraying demanding, high-end gun necessary aids,
Fast interfaces directly to the spray gun, ensure that the paint after
paint atomizing not mixed with any moisture inside.
Making higher quality paint spraying.

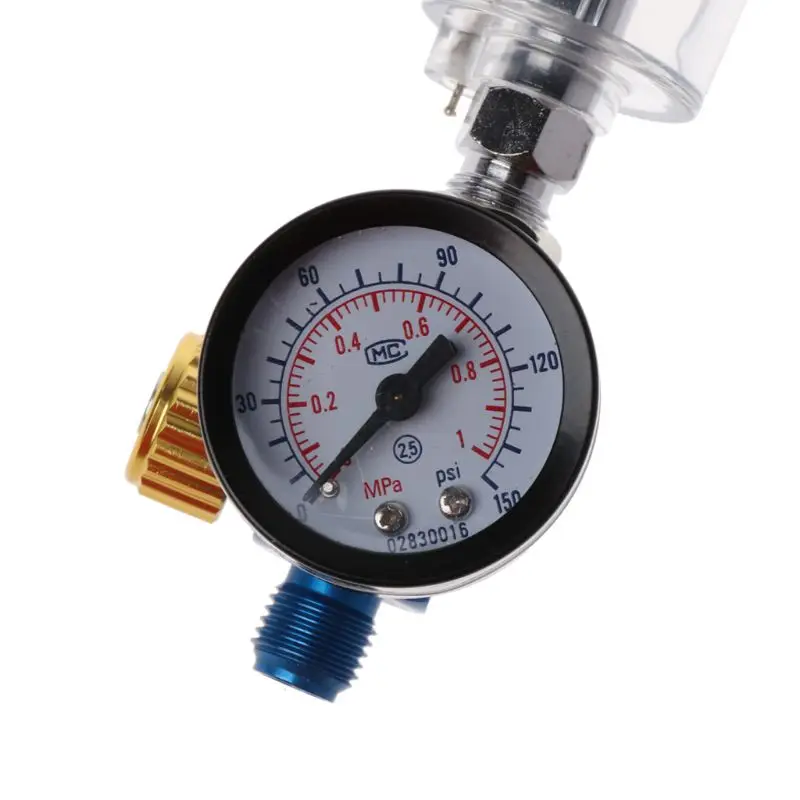

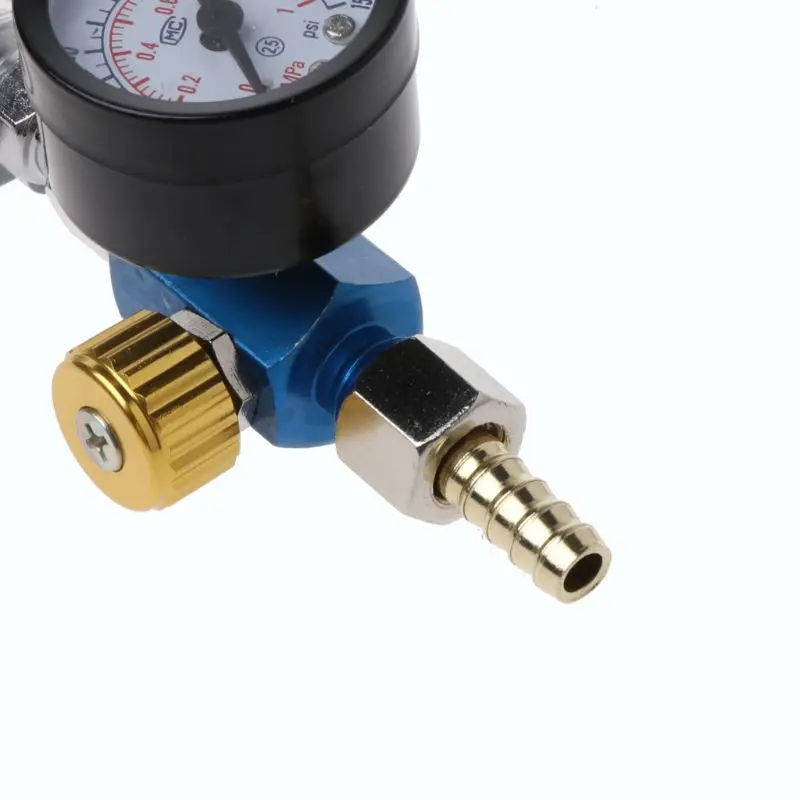

Pneumatic gun regulator
Table adjustable pressure regulator range 0-11BAR (British unit of 0-150PSI)
Air inlet thread -1 / 4NPT taper of the thread, the thread connecting the lance -1 / 4NPT internal thread.
Can be used with the gun, achieve the display, adjust and control the pressure,
It is the best partner upscale gun. Compact, flexible adjustment and light weight
New Oil-water separator
Color: red, green, black
Material: 6061 aluminum
Length: 90mm
Interface: 1/4-19 teeth
Scope of application: oil-water separation, air pressure adjustment
